Dustproof IP43 1800cd/m2 P3 Creative LED Display High Resolution

  • 1
  • 2

Brand Name : OEM

Model Number : OEM

Certification : CE/ROHS/FCC/UL/ISO/3C

Place of Origin : Shenzhen ,China

MOQ : Negotiable

Payment Terms : Bank T/T transfer, Western Union

Supply Ability : 6000sqm/month

Delivery Time : 7-20 days

Packaging Details : Plywood or Flight Case

Price : Negotiable

Tube Chip Color : Full Color

Pixels : 3mm

Display Function : Video

Brightness : ≥1800cd/m2

Cabinet Weight : 50kg/m2

Module Size : 192 (Width) × 96 (Height)

Contact Now


Dustproof IP43 1800cd/M2 P3 Creative LED Display High Resolution

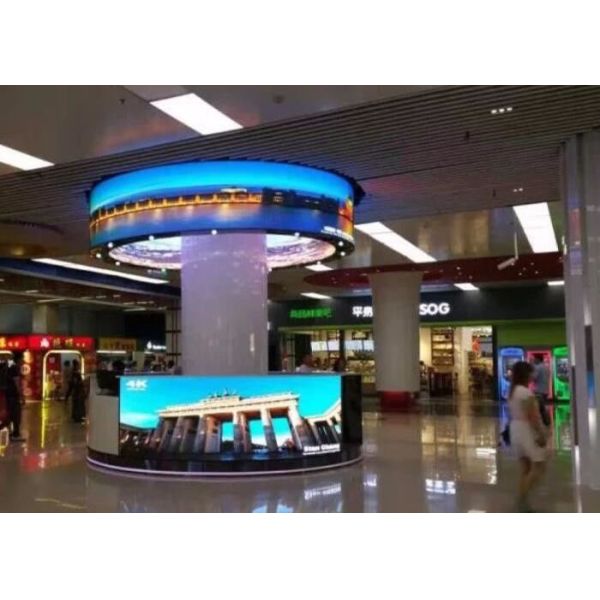

P3 Flexible LED Screens is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fn is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Die-casting aluminum, secure and nice in constitution.

>> Features
1) No fans, mute when operation.
2) Dustproof, IP43.
3) High refresh rate and high gray depth.
4) Completely black LED with high contrast.
5) Standard cabinet size is 500mm x 500mm.
6) Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the range.
7) Exactly connected and easy to install and dismount.

Pixel Information Pixel Pitch 3mm
Pixel Density 111111 Pixels/m2
Pixel Configuration 1R1G1B
LED Wavelength Red: 615 nm - 635 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size(mm) 192 (Width) × 96 (Height)
Module Resolution 64(Width) × 32 (Height)
Cabinet Cabinet Size(mm) 576 (Width) ×576(Height)
Cabinet Resolution 192 (Width) × 192 (Height)
Total QYT Module Per Cabinet 3 (Width) ×6(Height)
Cabinet Weight 50kg/m2
Cabinet Material Metal / Aluminum LED Display
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 1200 Watt/m2
Avg. Power Consumption 720 Watt/m2
Brightness

≥1800cd/m2
Brightness Uniformity Luminance Discrepancy < 5%
Best Viewing Angle Horizontal:140°,Vertical:70°
Viewing Distance 5 - 15 meters
Ambint Conditions Temperature Range Working:-20deg. to +60deg
Operating Humidity 10%90%RH
Ingression Protection Grade IP30
Processing Scanning Mode 1/16 scanning
Refresh Frequency 600-1200HZ, Adjustable(depends on control system)
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN, RS 232/RS485
Controller Linsn or Nova


>> Advantage
1. Wide Applicability: Stage rental events, entertainment, indoor and outdoor environment.
2. Light Weight:Using aluminum profile material, the cabinet weight is only7.5kg.
3. High Contrast Ratio: novel design of mask,contrast ratio can reach 2200.
4. Quiet:Direct current fan only has little noise.
5.Thin:the thickest part of cabinet is only 64mm.
6. High Precision:each cabinet of precision deviation <0.5mm
Dustproof IP43 1800cd/m2 P3 Creative LED Display High Resolution

FQA:

  • What is the payment method?
  • We support a variety of payment methods, the most common is the TT;
  • How about your production ability?
  • We have 10 production lines with all series of automatic production machines. Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;
  • What's the controlling system?
  • Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system,like HD,Xixun,TF, Colorlight, etc;
  • Are you manufacturer or trading company?
  • We are manufacturer with professional marketing and service team;
  • Besides this product, may I have other options?
  • Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;
  • Can it play HD video?
  • Yes, it can realize HD video function with Linsn/nova controlling system;
